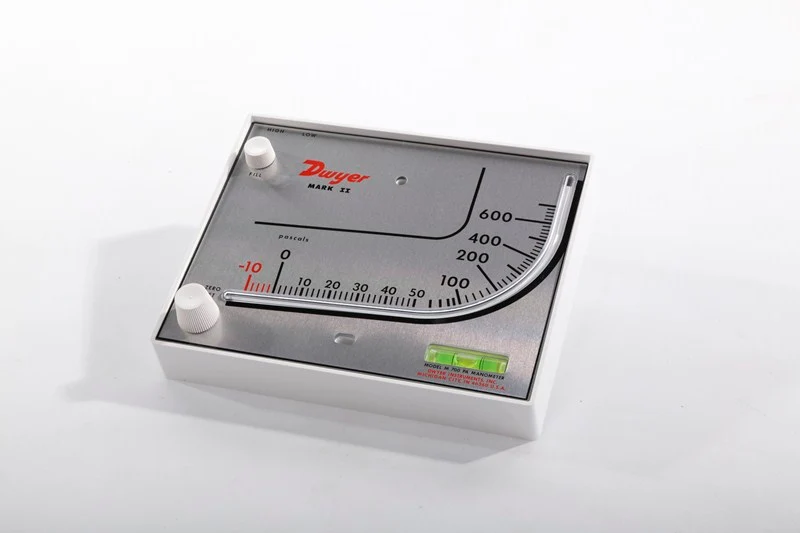

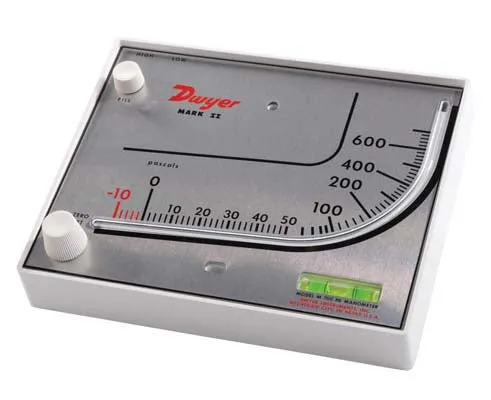

Dwyer Series Mark II Molded Plastic Manometer

The curved inclined-vertical tube of the Model 25 gauge provides higher ranges with more easily read increments at low readings. The Model 25 is excellent for general purpose work. The Mark II is capable of pressure measurements above and below atmospheric as well as differential pressure measurements.

• Accuracy: ±3% FS.

• Temperature Limits: Inclined/Vertical Models: 60°C


Pressure Limits: Inclined/Vertical Models: 10 psi (70 kPa)

• Installation: Mark II Manometers can be mounted on any vertical surface with the two mounting screws provided. A built-in spirit level simplifies leveling before mounting screws are tightened. Simply fill the reservoir, adjust fluid level to zero, connect the tubing, and the gauge is ready for operation.
  Model Number M-700PA-100069-00
